Synergy Between Commodity Molecules and Nanoparticles as Steam Mobility Control Additives for Thermal Oil Recovery

Achieving mobility control of steam in porous media has been approached by the implementation of foaming surfactant additives; however, foam generated with surfactants lack stability at high temperatures (≥ 200 °C). In this study, a nanofluid was formulated for steam co-injection to address common issues with surfactants as steam additives. The nanofluids were formulated using synergistic interaction of nanoparticles and surfactants (both readily available) to address thermal stability, and foam stability at the conditions encountered in thermal enhanced oil recovery processes such as steam assisted gravity drainage.

Zeta potential analysis, static tests, and high temperature aging tests were performed to obtain the ideal mixture of nanoparticles and surfactants. A steam/foam core flooding apparatus was used to evaluate the mobility reduction of nanofluids using multiple differential pressure transmitters situated along the length of a 40 cm sand pack to confirm foam propagation. The tests were first conducted at 200 °C with nitrogen as a non-condensable gas carrier. Upon confirming nanofluid mobility reduction characteristics at 200 °C with gas, a successful nanofluid was co-injected with superheated steam at backpressure corresponding to a saturation temperature of 200 °C inside an oven with that set point. Mobility reduction characteristics were obtained for each formulation by normalizing the differential pressure of additive multiphase flow to their respective baselines.

Static tests and high-temperature core floods demonstrated a strong synergy between appropriate combinations of surfactants and nanoparticles. None of the surfactants and nanoparticles yielded mobility reduction when used on their own; however, when selected according to a design basis, nanoparticle/surfactant mixtures exhibit strong mobility control with steam as well as hot gas. The foam produced in the porous media was held in a visual cell at 150 °C for 24 h with no loss in foam height. Furthermore, foam generated with the nanoparticle-surfactant hybrid remained stable in static tests in the presence of heavy crude oil for more than one week.

The primary novelty of this study is the ability to use less exotic surfactants and nanoparticles as steam mobility control agents, increased foam stability in the presence of oil, and demonstrable synergy between commodity molecules (i.e., surfactant) and nanoparticles at steam flooding conditions. The successful additive mixture was developed with scalability in mind such that manufacturing will not hinder the feasibility of scale-up for industrial use.

For more technical information please read our papers or contact us for more information.
https://onepetro.org/SPEATCE/proceedings-abstract/20ATCE/4-20ATCE/D041S049R004/449917

Synergistic Effect between Surfactant and Nanoparticles on the Stability of Foam in EOR Processes

The major challenge in enhanced oil recovery (EOR) by gas injection is poor volumetric sweep efficiency, mainly due to the high gas mobility and reservoir heterogeneity. Injecting gas as a foam increases sweep efficiency but maintaining foam stability within the reservoir remains a challenge. This research evaluates the synergistic interaction of one type of nanoparticle and a surfactant to increase foam stability, using the concentration ratio of the two components to tune the affinity of the nanoparticle for the gas/liquid interface. We test the capability of the synergistic two‐component system to stabilize methane foam and compare it with foam stabilized by surfactants only. A key distinction is the foam stability upon contact with oil, and we explain the observations in static and dynamic conditions.

The extent to which nanoparticles are covered with surfactant governs the foam stability, in both static and dynamic conditions. Static foam is stable in the presence of oil only if the nanoparticles are partially covered by the surfactant. In the dynamic test, foam stabilized with only the surfactant collapses in the porous media when oil is present. Nanoparticles alone could not generate foam regardless of the presence of oil or salinity, but foam stabilized with nanoparticles partially covered by surfactant is stable in the presence of both residual and initial oil, and foam apparent viscosity could reach up to 400 cp at residual heavy oil condition. In both static and dynamic conditions, nanoparticles completely covered with a bilayer of surfactant do not stabilize foam in the presence of oil. Partially covered nanoparticle foam also demonstrated salt tolerance in both static and dynamic tests, and foam apparent viscosity can reach up to 200 cp with high salinity and residual heavy oil presented. Thus, at appropriate surface coverage, the combination of nanoparticles and surfactant is more effective than either stabilizer alone.

The result shows that interaction of surfactant and nanoparticles is important in foam stability in the porous media with oil. In particular, this interaction is synergistic at certain coverage. This type of synergy can provide much more robust mobility control for EOR processes involving gas injection.

For more technical information please read our papers or contact us for more information.
https://onepetro.org/SJ/article-abstract/25/02/883/453331/Synergistic-Effect-between-Surfactant-and?redirectedFrom=fulltext

A Novel Hybrid Solvent-Based Complex Fluid for Enhanced Heavy Oil Recovery

This study designs a novel complex fluid (foam/emulsion) using as main components gas, low-toxicity solvents (green solvents) which may promote oil mobilization, and synergistic foam stabilizers (i.e. nanoparticles and surfactants) to improve sweep efficiency. This nanoparticle-enabled green solvent foam (NGS-foam) avoids major greenhouse gas emissions from the thermal recovery process and improves the performance of conventional green solvent-based methods (non-thermal) by increasing the sweep efficiency, utilizing less solvent while producing more oil.

Surfactants and nanoparticles were screened in static tests to generate foam in the presence of a water-soluble/oil-soluble solvent and heavy crude oil from a Canadian oil field (1600 cp). The liquid phase of NGS-foam contains surfactant, nanoparticle, and green solvent (GS) all dispersed in the water phase. Nitrogen was used as the gas phase. Fluid flow experiments in porous media with heterogeneous permeability structure mimicking natural environments were performed to demonstrate the dynamic stability of the NGS-foam for heavy oil recovery. The propagation of the pre-generated foam was monitored at 10 cm intervals over the length of porous media (40 cm). Apparent viscosity, pressure gradient, inline measurement of effluent density, and oil recovery were recorded/calculated to evaluate the NGS-foam performance.

The outcomes of static experiments revealed that surfactant alone cannot stabilize the green solvent foam and the presence of carefully chosen nanoparticles is crucial to have stable foam in the presence of heavy oil. The results of NGS-foam flow in heterogeneous porous media demonstrated a step-change improvement in oil production such that more than 60% of residual heavy oil was recovered after initial waterflood. This value of residual oil recovery was significantly higher than other scenarios tested in this study (i.e. GS- water and gas co-injection, conventional foam without GS, GS-foam stabilized with surfactant only and GS-waterflood). The increased production occurred because NGS-foam remained stable in the flowing condition, improves the sweep efficiency and increases the contact area of the solvent with oil. The latter factor is significant: comparing to GS-waterflood, NGS-foam produces a unit volume of oil faster with less solvent and up to 80% less water. Consequently, the cost of solvent per barrel of incremental oil will be lower than for previously described solvent applications. In addition, due to its water solubility, the solvent can be readily recovered from the reservoir by post flush of water and thus re-used.

The NGS-foam has several potential applications: recovery from post-CHOPS reservoirs (controlling mobility in wormholes and improving the sweep efficiency while reducing oil viscosity), fracturing fluid (high apparent viscosity to carry proppant and solvent to promote hydrocarbon recovery from matrix while minimizing water invasion), and thermal oil recovery (hot NGS-foam for efficient oil viscosity reduction and sweep efficiency improvement).

For more technical information please read our papers or contact us for more information.
https://onepetro.org/SPEWRM/proceedings-abstract/20WRM/1-20WRM/D011S004R008/461347

Cellulose Nanocrystal Switchable Gel Improves CO2 Sweep Efficiency

This paper reveals the potential of an in-situ generated gel system designed with a bionanoparticle that has tunable strength and gelation reversibility in porous media for underground applications.

For more technical information please read our papers or contact us for more information.
https://jpt.spe.org/cellulose-nanocrystal-switchable-gel-improves-co2-sweep-efficiency

The major challenge in enhanced oil recovery (EOR) by gas injection is poor volumetric sweep efficiency, mainly due to the high gas mobility and reservoir heterogeneity. Injecting gas as a foam increases sweep efficiency but maintaining foam stability within the reservoir remains a challenge. This research evaluates the synergistic interaction of one type of nanoparticle and a surfactant to increase foam stability, using the concentration ratio of the two components to tune the affinity of the nanoparticle for the gas/liquid interface. We test the capability of the synergistic two‐component system to stabilize methane foam and compare it with foam stabilized by surfactants only. A key distinction is the foam stability upon contact with oil, and we explain the observations in static and dynamic conditions.

The extent to which nanoparticles are covered with surfactant governs the foam stability, in both static and dynamic conditions. Static foam is stable in the presence of oil only if the nanoparticles are partially covered by the surfactant. In the dynamic test, foam stabilized with only the surfactant collapses in the porous media when oil is present. Nanoparticles alone could not generate foam regardless of the presence of oil or salinity, but foam stabilized with nanoparticles partially covered by surfactant is stable in the presence of both residual and initial oil, and foam apparent viscosity could reach up to 400 cp at residual heavy oil condition. In both static and dynamic conditions, nanoparticles completely covered with a bilayer of surfactant do not stabilize foam in the presence of oil. Partially covered nanoparticle foam also demonstrated salt tolerance in both static and dynamic tests, and foam apparent viscosity can reach up to 200 cp with high salinity and residual heavy oil presented. Thus, at appropriate surface coverage, the combination of nanoparticles and surfactant is more effective than either stabilizer alone.

The result shows that interaction of surfactant and nanoparticles is important in foam stability in the porous media with oil. In particular, this interaction is synergistic at certain coverage. This type of synergy can provide much more robust mobility control for EOR processes involving gas injection.

For more technical information please read our papers or contact us for more information.
https://onepetro.org/SJ/article-abstract/25/02/883/453331/Synergistic-Effect-between-Surfactant-and?redirectedFrom=fulltext

This study designs a novel complex fluid (foam/emulsion) using as main components gas, low-toxicity solvents (green solvents) which may promote oil mobilization, and synergistic foam stabilizers (i.e. nanoparticles and surfactants) to improve sweep efficiency. This nanoparticle-enabled green solvent foam (NGS-foam) avoids major greenhouse gas emissions from the thermal recovery process and improves the performance of conventional green solvent-based methods (non-thermal) by increasing the sweep efficiency, utilizing less solvent while producing more oil.

Surfactants and nanoparticles were screened in static tests to generate foam in the presence of a water-soluble/oil-soluble solvent and heavy crude oil from a Canadian oil field (1600 cp). The liquid phase of NGS-foam contains surfactant, nanoparticle, and green solvent (GS) all dispersed in the water phase. Nitrogen was used as the gas phase. Fluid flow experiments in porous media with heterogeneous permeability structure mimicking natural environments were performed to demonstrate the dynamic stability of the NGS-foam for heavy oil recovery. The propagation of the pre-generated foam was monitored at 10 cm intervals over the length of porous media (40 cm). Apparent viscosity, pressure gradient, inline measurement of effluent density, and oil recovery were recorded/calculated to evaluate the NGS-foam performance.

The outcomes of static experiments revealed that surfactant alone cannot stabilize the green solvent foam and the presence of carefully chosen nanoparticles is crucial to have stable foam in the presence of heavy oil. The results of NGS-foam flow in heterogeneous porous media demonstrated a step-change improvement in oil production such that more than 60% of residual heavy oil was recovered after initial waterflood. This value of residual oil recovery was significantly higher than other scenarios tested in this study (i.e. GS- water and gas co-injection, conventional foam without GS, GS-foam stabilized with surfactant only and GS-waterflood). The increased production occurred because NGS-foam remained stable in the flowing condition, improves the sweep efficiency and increases the contact area of the solvent with oil. The latter factor is significant: comparing to GS-waterflood, NGS-foam produces a unit volume of oil faster with less solvent and up to 80% less water. Consequently, the cost of solvent per barrel of incremental oil will be lower than for previously described solvent applications. In addition, due to its water solubility, the solvent can be readily recovered from the reservoir by post flush of water and thus re-used.

The NGS-foam has several potential applications: recovery from post-CHOPS reservoirs (controlling mobility in wormholes and improving the sweep efficiency while reducing oil viscosity), fracturing fluid (high apparent viscosity to carry proppant and solvent to promote hydrocarbon recovery from matrix while minimizing water invasion), and thermal oil recovery (hot NGS-foam for efficient oil viscosity reduction and sweep efficiency improvement).

For more technical information please read our papers or contact us for more information.
https://onepetro.org/SPEWRM/proceedings-abstract/20WRM/1-20WRM/D011S004R008/461347

This paper reveals the potential of an in-situ generated gel system designed with a bionanoparticle that has tunable strength and gelation reversibility in porous media for underground applications.

For more technical information please read our papers or contact us for more information.
https://jpt.spe.org/cellulose-nanocrystal-switchable-gel-improves-co2-sweep-efficiency

ArmorFoam™-EOR

ArmorFoam™-EOR is designed to manage short circuits and improve sweep efficiency during, waterflooding, gas injection including nitrogen injection, produced gas or any hydrocarbon gas injection, and CO2 injection. Short circuits management will reduce the carbon intensity of oil produced via ArmorFoam™-EOR while recovering more oil from existing assets.

ArmorFoam™-EOR creates high apparent viscosity compared to gas, water, and surfactant-based foam and manages reservoir short circuits effectively. The viscosity and stability of ArmorFoam™-EOR can be tuned on demand.
Oil recovery

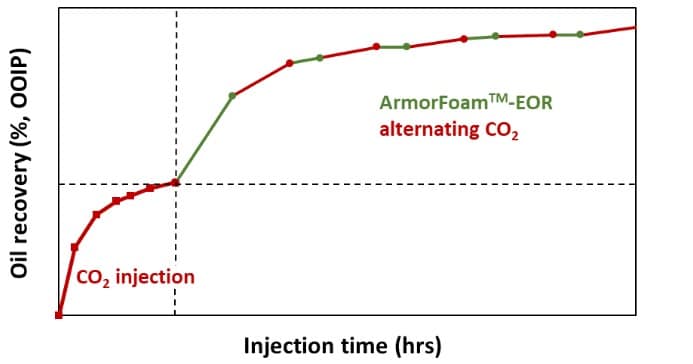

ArmorFoam™-EOR significantly improves oil recovery during gas injection.
ArmorFoam™-HT generates an order of magnitude higher mobility reduction factor compared to conventional surfactants. The mobility reduction factor can be tuned based on reservoir conditions and client needs.

ArmorFoam™-HT

Improving thermal enhanced oil recovery is challenging. Conventional surfactants lack stability at high temperatures to generate stable steam foam and control steam mobility. ArmorFoam™-HT is designed to address steam mobility and sweep efficiency challenges in the thermal oil recovery process.

(b) Can be designed with a wide range of commercially available materials and the same infrastructure facilitating the commercial deployment of ArmorFoam™ for different reservoirs worldwide. It can be sourced from biodegradable components as well.

(c) Can be tailored rapidly to specific reservoirs, whereas competitors offer one-size-fits-all product lines

(a) ArmorFoam™ are highly stable at various reservoir conditions in contact with crude oil, high salinity water, and reservoir rock. Such features enhance the success rate of field deployment significantly and guarantee a positive outcome.

ArmorFoamTM nanoparticles bubbles
ArmorFoamTM -unlike conventional foams- is armored by the network of nanoparticles creating stable bubbles for any harsh reservoir condition.
